EW6210/EW6220/EW6290

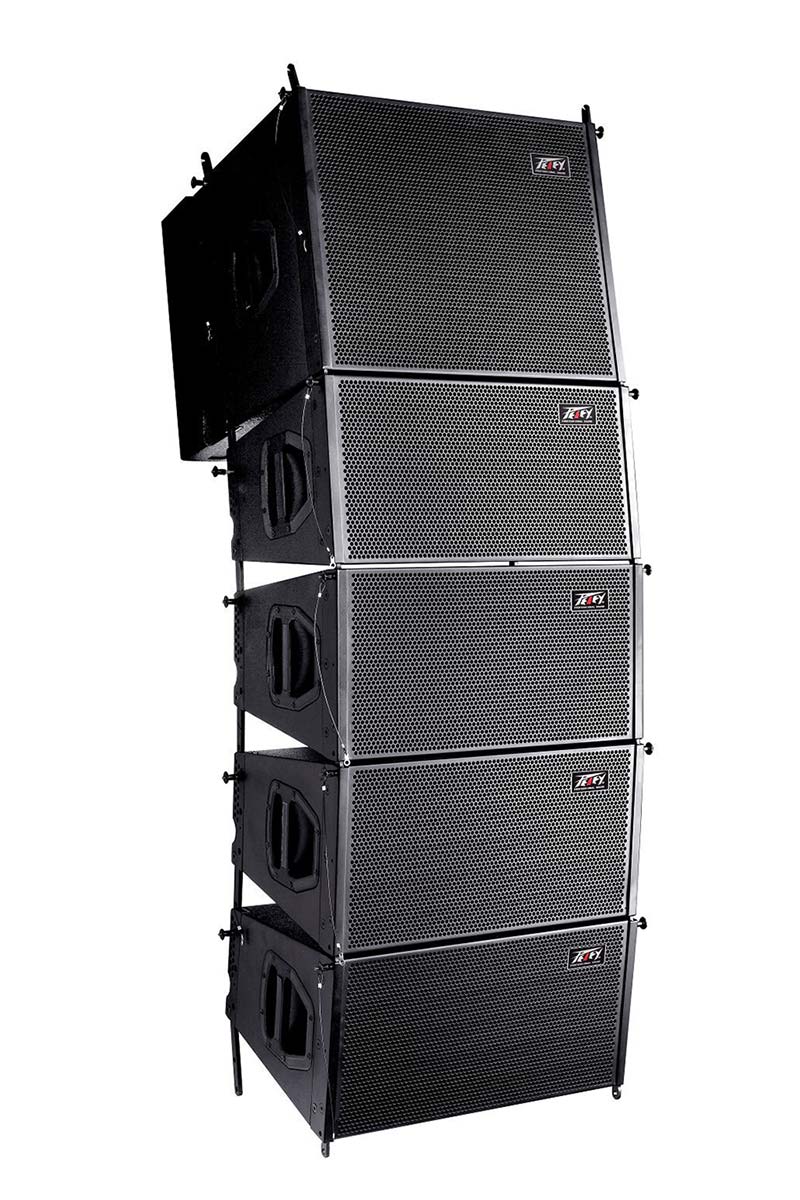

兩分頻有源線性陣列音箱LS-208/LS-118              lLS-208揚聲器採用有源兩分頻設計,內置D類數字功放模塊,功率800W,配有2個8寸低頻單元和一個3寸高頻壓縮驅動器單元,還附有一個110*70度的鼓式波導號角。110度恆定水平指向70度垂直擴散指向特性,在音箱陣列形成柱狀的曲面振波。75度的水平恆定指向特性可以控制下限至400HZ,而15度的垂直高頻擴散角使得LS-208能用於垂直陣列且在陣列前方產生曲面波陣面。音箱的機械構造結合聲學設計使每個音箱之間的垂直耦合角度可以在0°~14°之間進行調整,可升級為DSP網絡有源音箱。
       LS-118有源超低音箱 內置D類數字功放模塊,功率1800W,箱體結構是用堅固的加厚夾板製成,箱體表面上涂有一層加硬環保水性漆,音箱前面板用堅固的金屬棚格作為保護,棚格內加一層可更換的聲學透聲泡沫材料,側面板融合了一對把手,以及後面板嵌入了兩個NL4並行接口。巧妙的結合,使其音質發揮到極點,聲音透明清晰,中頻醇厚,人聲圓滑,配合LS-118的組合使用是你不二的選擇。適用于小型演出,室外擴聲,會議室,小禮堂,多功能廳等場所。

Two small frequency linear array speakers, LS-208 to LS-118       LS-208 speaker USES passive two frequency design, equipped with two 10 inch low frequency unit and a 3 inch high frequency compression drive unit, with a 110 * 70 - degree of drum waveguide horn.110 degrees at 70 degrees to the vertical diffusion at a constant level, the speaker array form columnar surface vibration wave.75 degree level constant pointing characteristics can control the lower limit to 400 hz, and 15 degrees vertical high-frequency diffusion Angle makes the Q - 1 can be used for vertical array and surface wave front ahead of the array is created.Speakers mechanical structure combination of acoustic design makes each speaker of vertical coupling between Angle may be between 0 ° ~ 14 ° to adjust.
        LS-208 box structure is made, the more solid plywood boxes on the surface coated with a layer of hardened environmental protection water-based paint, sound box front panel with the solid metal tents as protection, tents, add a layer of replaceable acoustics acoustic foam, the side plate is a blend of a pair of handles, as well as the rear panel embedded in two NL4 parallel interface.Ingenious combination, make it play to the extreme sound quality, sound clear transparent, intermediate frequency is mellow, smooth vocals, with the combination of the LS-11818 use is you don't choose.Applies to small venues, outdoor amplification, meeting rooms, small hall, multi-function hall and other places.







技 術 參 數    TECHNICAL SPECIFICATIONS



 MODE

LS-208

LS-118

  統

SYSTEM COMPOSITION

兩路三單元二分頻線性音箱

18寸單元超低頻音箱



LOUDSPEAKER

低音:8*2 51156

低音:18*1 100220

高音:75*1鈦膜高音





(OHM)NOMINAL LMPEDANCE

12

8



W)POWER RATING

400W

900W

最大 承受 功率

(W)MAXIMUM INPEDANCE

800W

1800W

     範 圍

(HZ)FERQUENCY RESPONSE

100-20KHZ

40-200HZ



(DB)SOUND PRESSURE LEVEL(SPL)

120dB(峰值)

132dB(峰值)



NOMINAL COVERAGE

110*70





CONNECTOR

NL4MP*2

NL4MP*2



HANG

線性吊掛

線性吊掛

產

(W*D*H)DIMENSIONS

580*329*306MM

580*488*650MM
